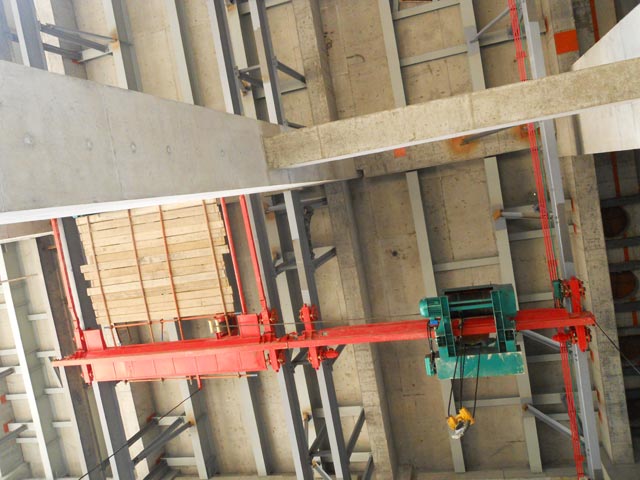

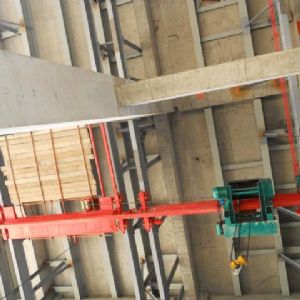

The LXG suspension (over-rail) crane is a special crane equipment for the power plant coal-fired system for the generator set. Its main purpose is to overhaul the coal mill. The working level is A1-A3, and the working environment temperature is -25°C-+40°C. It is not advisable to lift molten metal or toxic, flammable or explosive materials.
This product is a combination device consisting of an electric hoist trolley, an electric double-beam suspension crane (main vehicle), a (hand) electric single (double) beam suspension crane (sub-vehicle) and an over-track device. The electrical system is operated and controlled via push button switches.

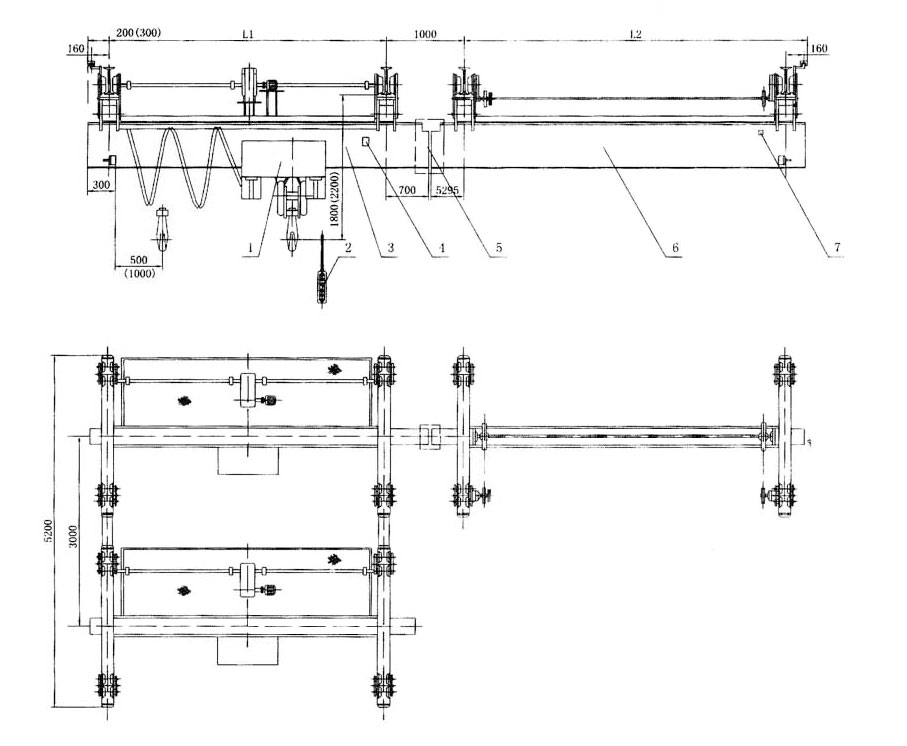

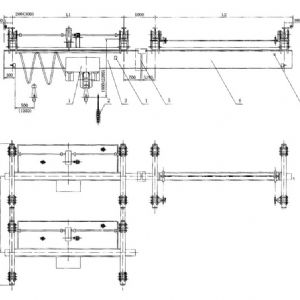

Overhead crane outline drawing
1. Electric hoist trolley 2. Operation control handle 3. Electric double beam suspension crane (main vehicle) 4. Tonnage card 5. Over-track device 6. Electric single (double) beam crane (sub-car) 7. Nameplate
Note: The size in parentheses is 20+20t.
| Project | t | Electric double beam suspension crane (main car) | Electric double beam suspension crane (sub-car) | Electric hoist | |
| Lifting capacity | mm | 12.5+12.5 | 12.5 | 12.5+12.5 | |
| Span | m | 3000 | 5000 | ||
| Lifting height | m/min | 10 | 10 | 10 | |
| Lifting speed | m/mim | 3.5 | 3.5 | 3.5 | |
| Running speed | 20 | 20 | 20 | ||
| Working level | A3 | A3 | Lifting mechanism M3 | ||
| Running motor | Model | ZDY121-4 | ZDY121-4 | ZDY121-4 | |
| Power | kw | 0.8x4 | 0.8x2n(n为Number of sub-cars)0.8x2n | 0.8x4 | |
| Lifting motor | Model | ZD1 51-4 | |||
| Power | kw | 13x2 | |||
| Set of wheel pressure | kN | ≤ 71.6 | ≤ 71.8 | ≤ 34 | |
| Quality | kg | 2750 | 1130x2 | ||
| Wheel diameter | Φ164 | ||||
| Power supply | Three phase 380V 50Hz | ||||
| Project | t | Electric double beam suspension crane (main car) | Electric double beam suspension crane (sub-car) | Electric hoist | |
| Lifting capacity | mm | 16+16 | 16 | 16+16 | |
| Span | m | 3650 | 4000 | ||
| Lifting height | m/min | 11 | 11 | 11 | |
| Lifting speed | m/mim | 3.5 | 3.5 | 3.5 | |
| Running speed | 20 | 20 | 20 | ||
| Working level | A3 | A3 | Lifting mechanism M3 | ||
| Running motor | Model | ZDY121-4 | ZDY121-4 | ZDY121-4 | |
| Power | kw | 0.8x4 | 0.8x2n(n为Number of sub-cars)0.8x2n | 0.8x4 | |
| Lifting motor | Model | ZD1 51-4 | |||
| Power | kw | 13x2 | |||
| Set of wheel pressure | kN | ≤ 90 | ≤ 90.1 | ≤ 43.1 | |
| Quality | kg | 3050 | 1560xn(n为Number of sub-cars)1560xn | 1240x2 | |
| Wheel diameter | Φ164 | ||||
| Power supply | Three phase 380V 50Hz | ||||
| Project | t | Electric double beam suspension crane (main car) | Electric double beam suspension crane (sub-car) | Electric hoist | |
| Lifting capacity | mm | 20+20 | 20 | 20+20 | |
| Span | m | 3500 | 3650 | 1500 | |
| Lifting height | m/min | 10 | 10 | 10 | |
| Lifting speed | m/mim | 3.3 | 3.3 | 3.3 | |
| Running speed | 20 | 20 | 20 | ||
| Working level | A3 | A3 | Lifting mechanism M3 | ||
| Running motor | Model | ZDY121-4 | ZDY121-4 | ZDY121-4 | |
| Power | kw | 0.8x8 | 0.8x2n(n为Number of sub-cars)0.8x2n | 0.8x8 | |
| Lifting motor | Model | ZD1 52-4 | |||
| Power | kw | 18.5x2 | |||
| Set of wheel pressure | kN | ≤ 91.8 | ≤ 92.9 | ≤ 59.8 | |
| Quality | kg | 5010 | 2380xn(n为Number of sub-cars)1560xn | 3950x2 | |
| Wheel diameter | Φ164 | ||||
| Power supply | Three phase 380V 50Hz | ||||
The weight provided in this sample is the design value, the manufacturing value is ±15%.
